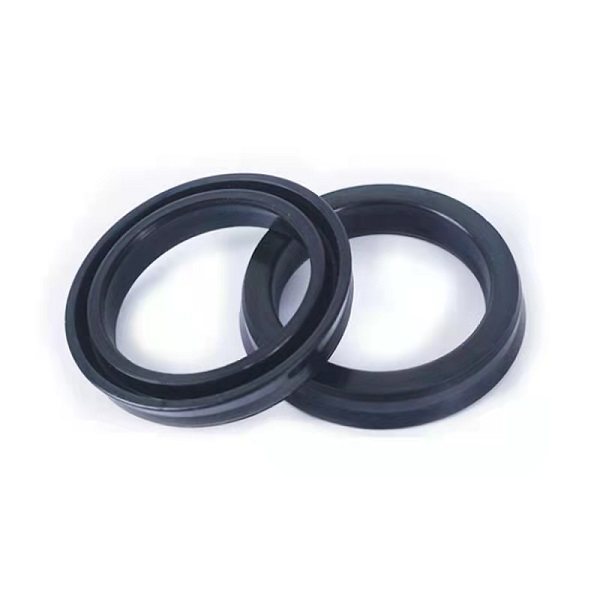

QY-d Pneumatic seal
Proporty
| Max Pressure | ≤16Bar |
| Temperature | -35℃~+80℃ |
| Max Speed | ≤1m/s |
| Media | Air |
| Hardness | 73-77 Shore A |
| Color | Black Light Green, Blue |
Advantage
● Suitable for demanding working conditions
● Long service life
● Low coefficient of friction
● High sealing performance
● Easy to disassemble and easy to test
Size
| QY-d Pneumatic seal | ||
| SIZE | SIZE | SIZE |
| 12*20*8 | 60*72*12 | 160*175*16 |
| 14*22*8 | 63*73*12 | 160*176*16 |
| 16*24*8 | 63*75*12 | 180*195*16 |
| 18*26*8 | 70*80*12 | 180*196*16 |
| 20*28*8 | 70*82*12 | 200*215*16 |
| 22*30*8 | 80*90*12 | 200*216*16 |
| 25*33*8 | 80*92*12 | 220*235*16 |
| 28*36*8 | 90*100*12 | 220*236*16 |
| 32*40*8 | 90*102*12 | 250*265*16 |
| 36*44*8 | 100*110*12 | 250*266*16 |
| 40*48*8 | 100*112*12 | 280*295*16 |
| 45*53*8 | 110*120*12 | 280*296*16 |
| 50*60*12 | 110*122*12 | 320*335*16 |
| 50*62*12 | 125*135*12 | 320*336*16 |
| 56*66*12 | 125*137*12 | 340*360*20 |
| 56*68*12 | 140*150*12 | 360*380*20 |
| 60*70*12 | 140*152*12 | |
